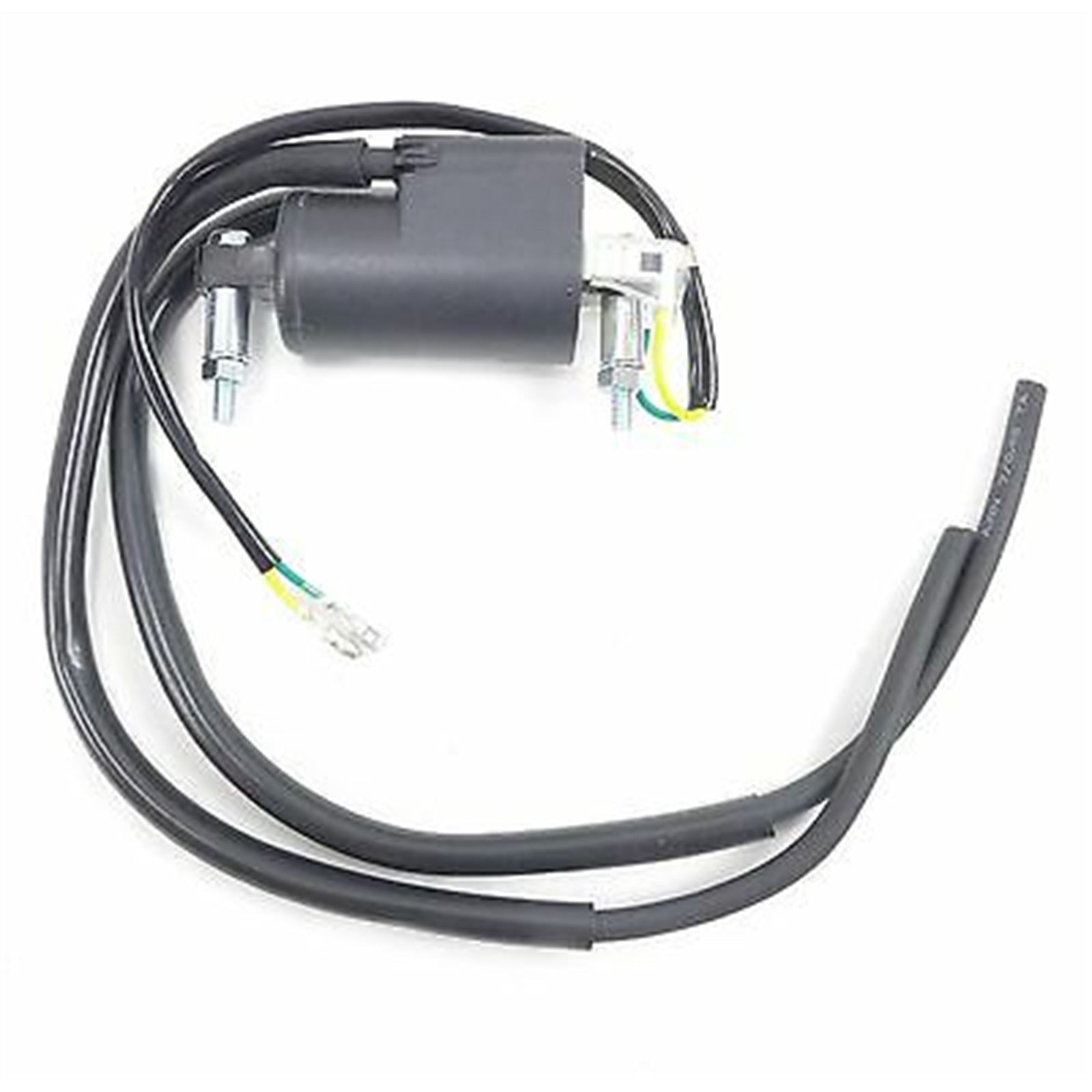

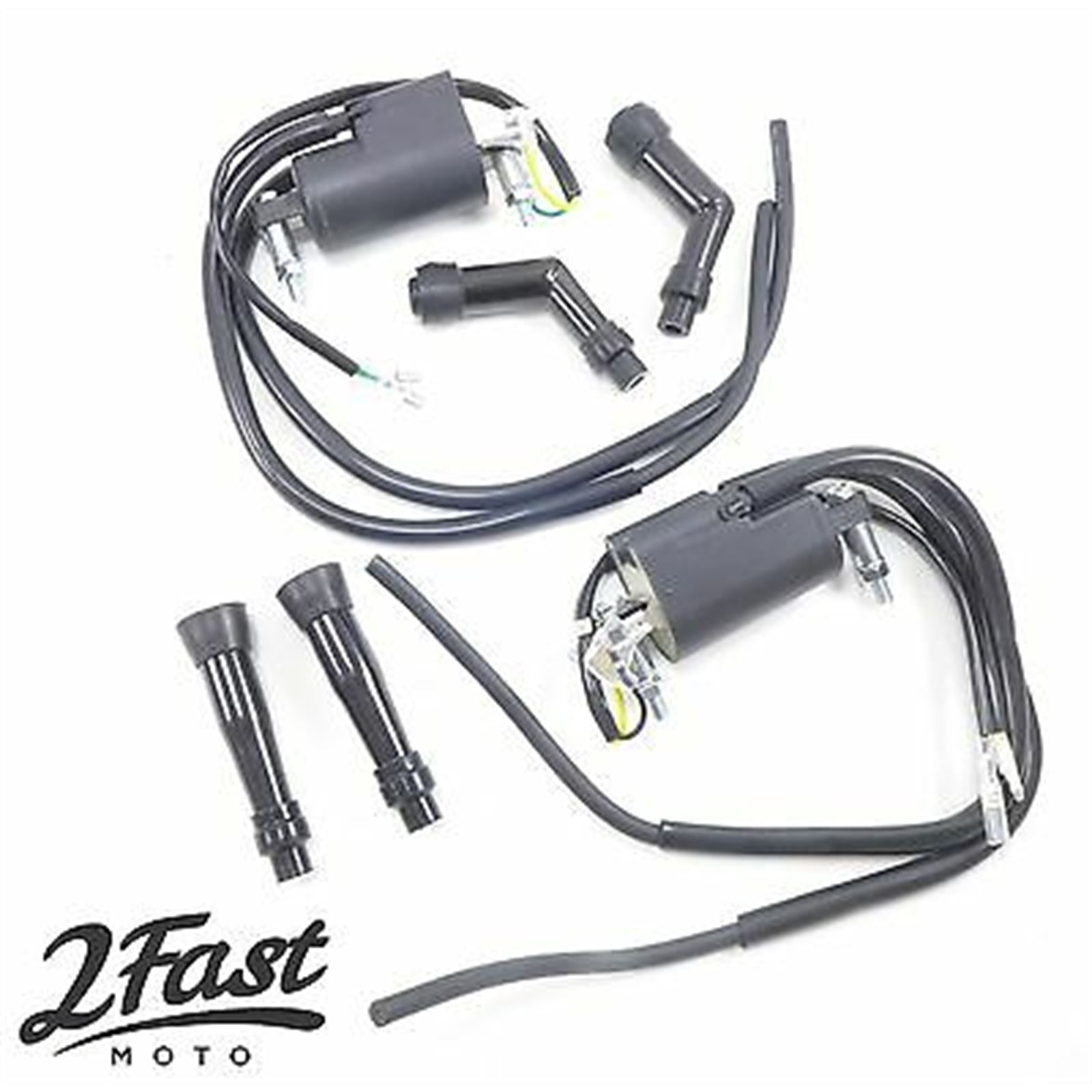

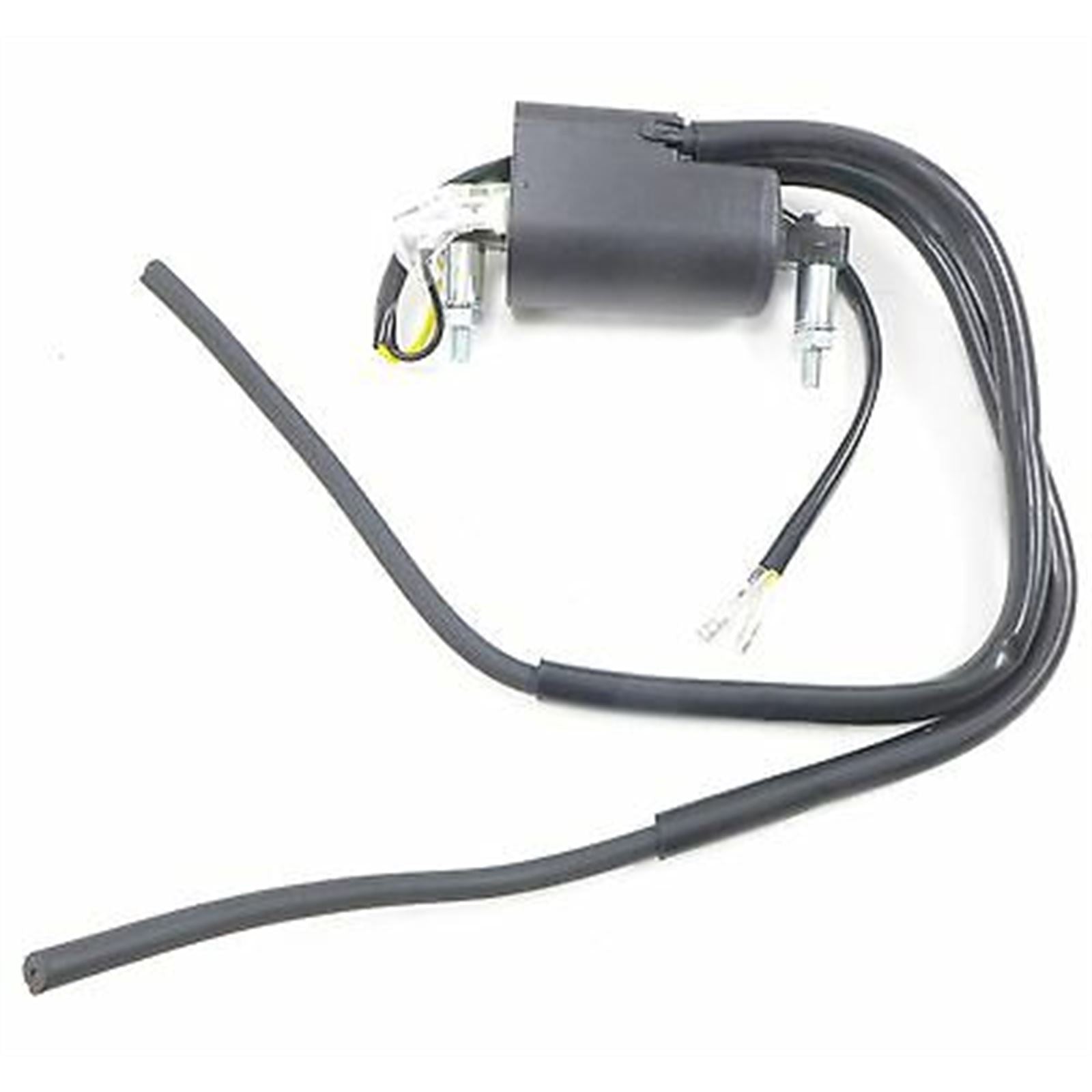

2FastMoto 12v High Performance Ignition Coil Set
High Performance Coils that Meet or Exceed Orig. Equipment Specs!
Color-coded, right and left-matched pair of coils!
Primary and Secondary Resistance Specs match the original Kawasaki Specs!
Specifically matches to Kawasaki KZ models, but will work with the Suzuki GS models and Honda CB models !

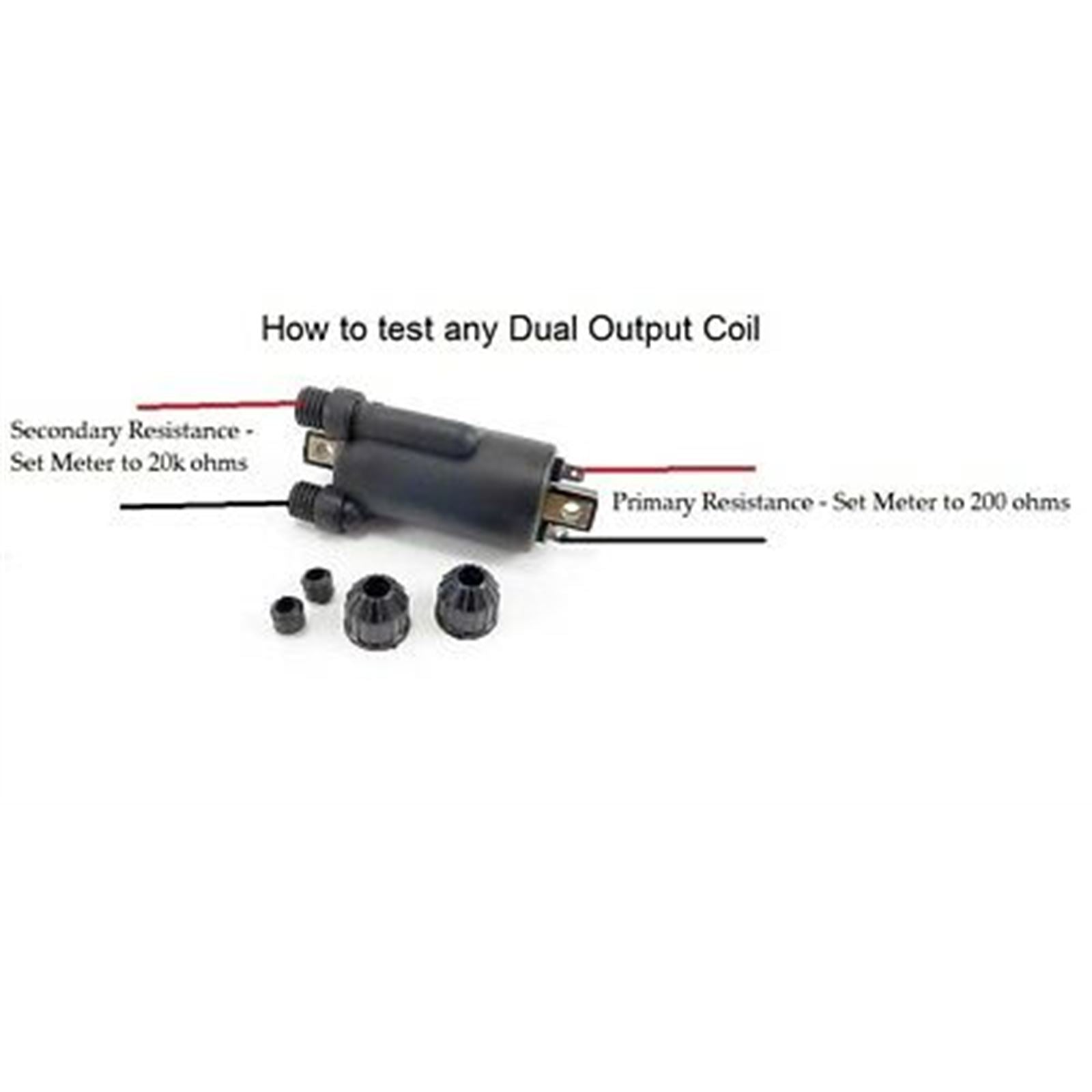

Note: Most often these coils will work with BOTH Points and Electronic Ignition Systems, but please check the specs of the Primary and Secondary Resistance and compare that to your original coils. You may need to consult a manual for your specific bike.
Note: Please see all SPECS and PICS, before purchasing, to ensure this is the correct part for your specific application!
Replaces Orig. Equipment#s 21121-1174 / 21121-1001 / 21121-1002 / 21121-060 / 21121-058 21171-1019 / 21121-1003 / 21121-1004 / 21121-081 / 21121-1014
Fits:
Kawasaki KZ - Suzuki GS - Honda CB650, 750, 900
Item Specs:
Both Coils: Dual Lead / Dual Feed
Coils Voltage: 12 volts
Primary OHMs: 4.0 OHM +/- 10%
Secondary OHMs: 14.5 kOHM +/- 10%
Mounting Bolts (center to center): 90mm
Overall length end to end: 108mm
Overall width of main body: 40mm
Overall height of main body: 48mm
Overall length of main body: 68mm
Overall length of plug wire: 16"

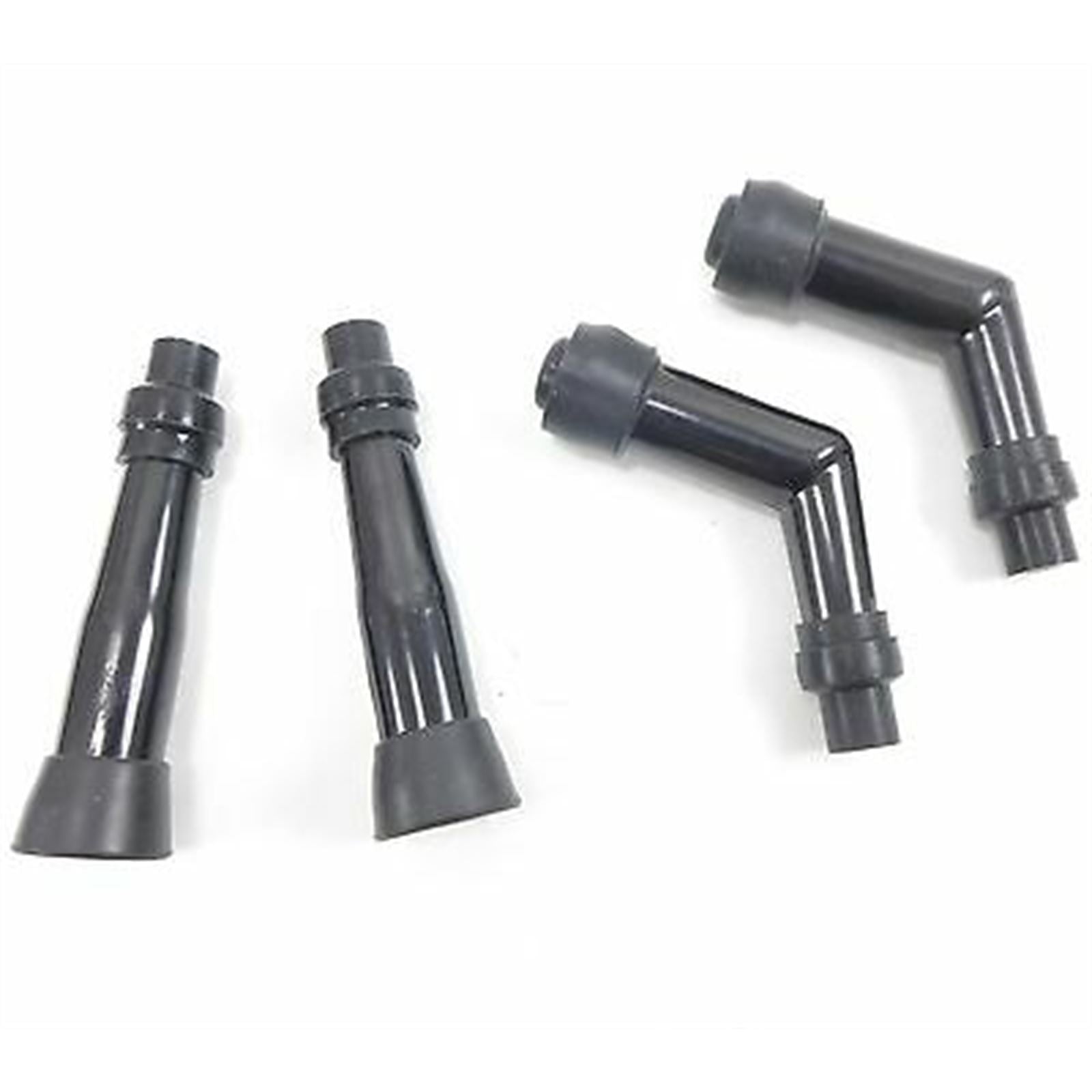

Spark Plug Caps4 Included for Free
Cap Type: 120 Degree Long Caps (QTY 2), Straight Caps (QTY 2)
Cap Resistance: 5 kOHM (For all caps included)
