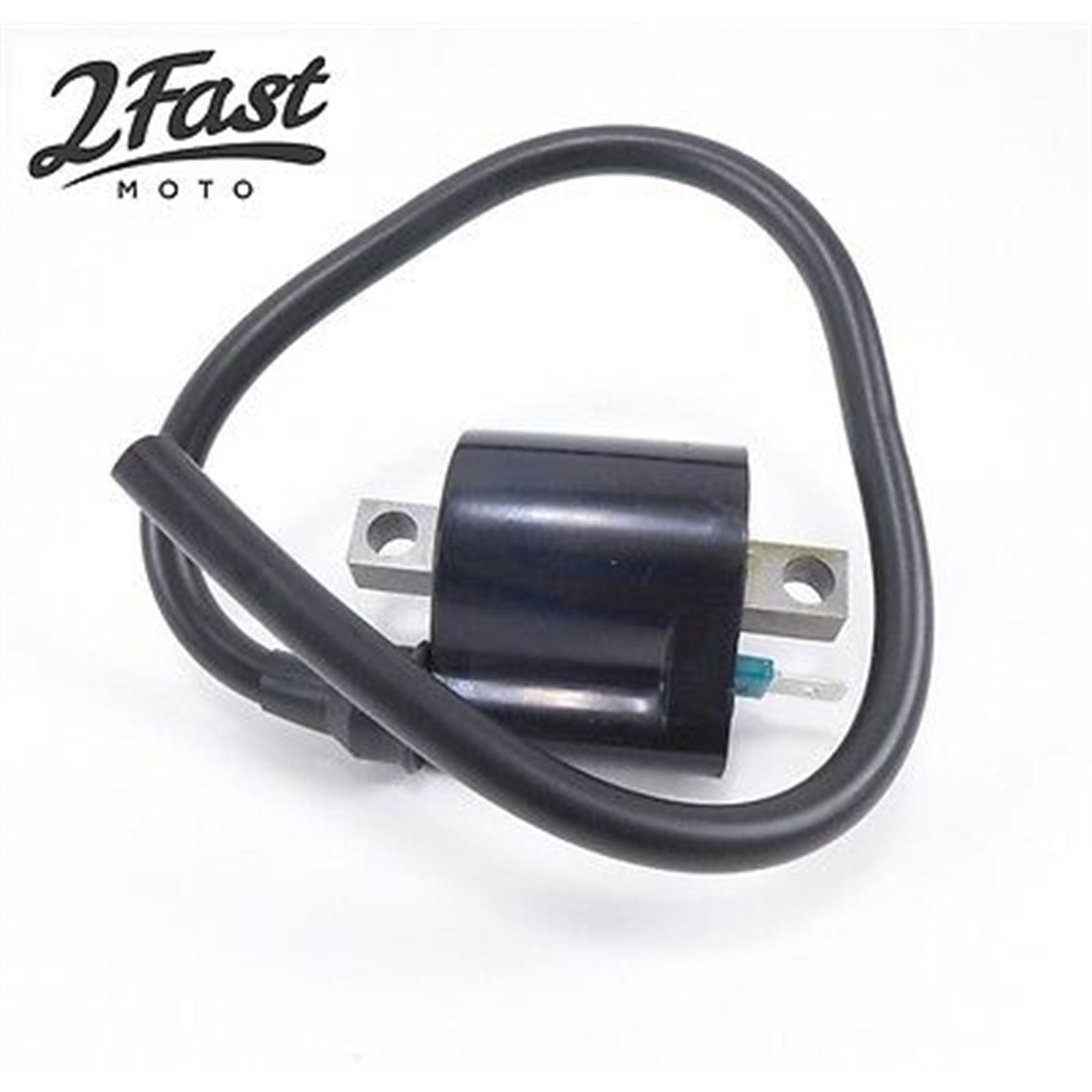

2FastMoto 12v Single Lead / Single Feed Ignition Coil
This is a RARE and hard to find coil! You may have to modify the wiring and/or mount, but at this price, it's hard to beat!
Note: If you have the longer or different cap you may have to re-use your existing cap. It just unscrews from the wire.
Fits:
Gas Gas EC, MC, XC - Honda XL, XR - Kawasaki KX, KLX
Item Specs:
Voltage: 12 volts
Primary OHMs: 0.6 OHM +/- 10%
Secondary OHMs: 9.8k OHM +/- 10%

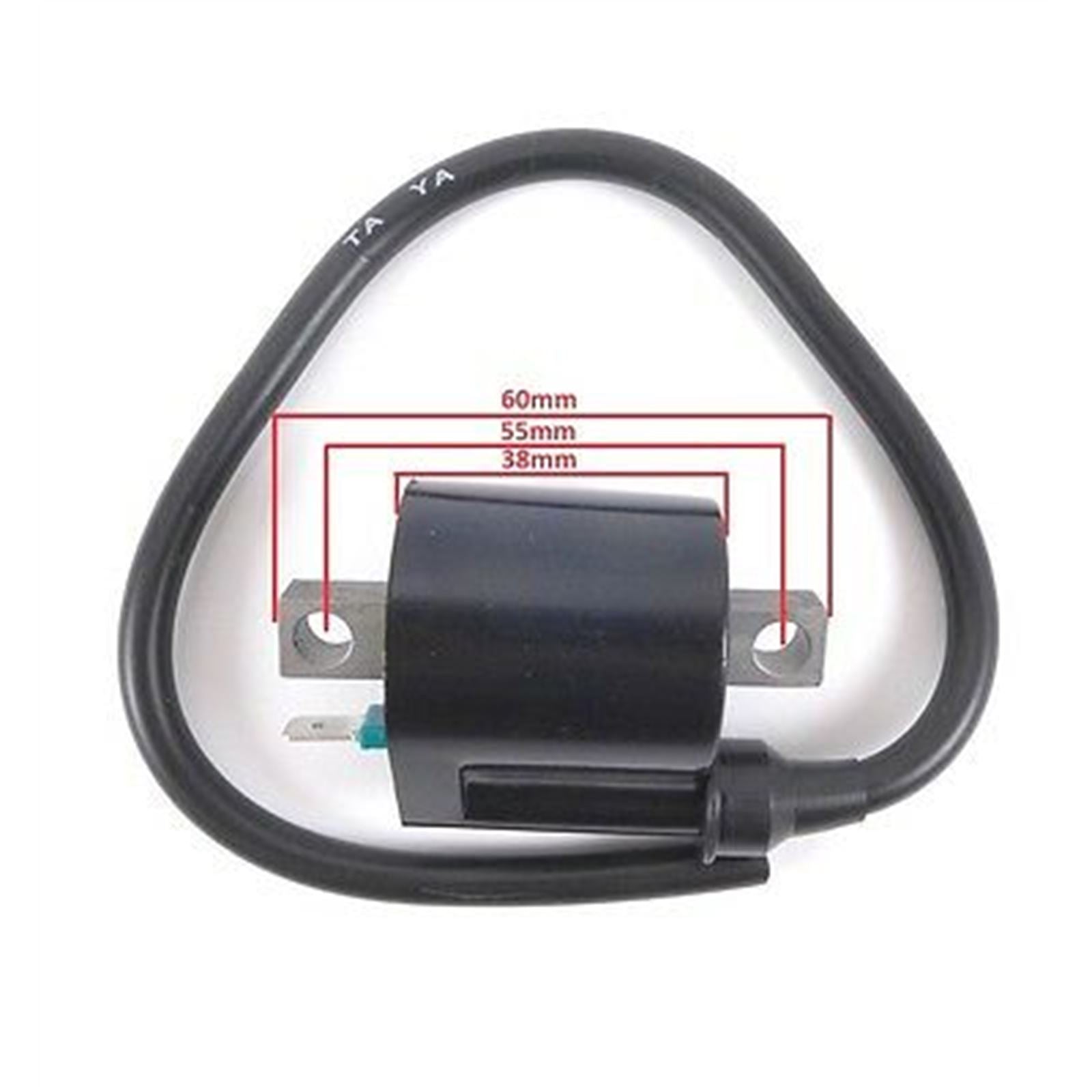

Mounting Plates: 60mm (End-to-End)
Mounting points (center to center): 55mm

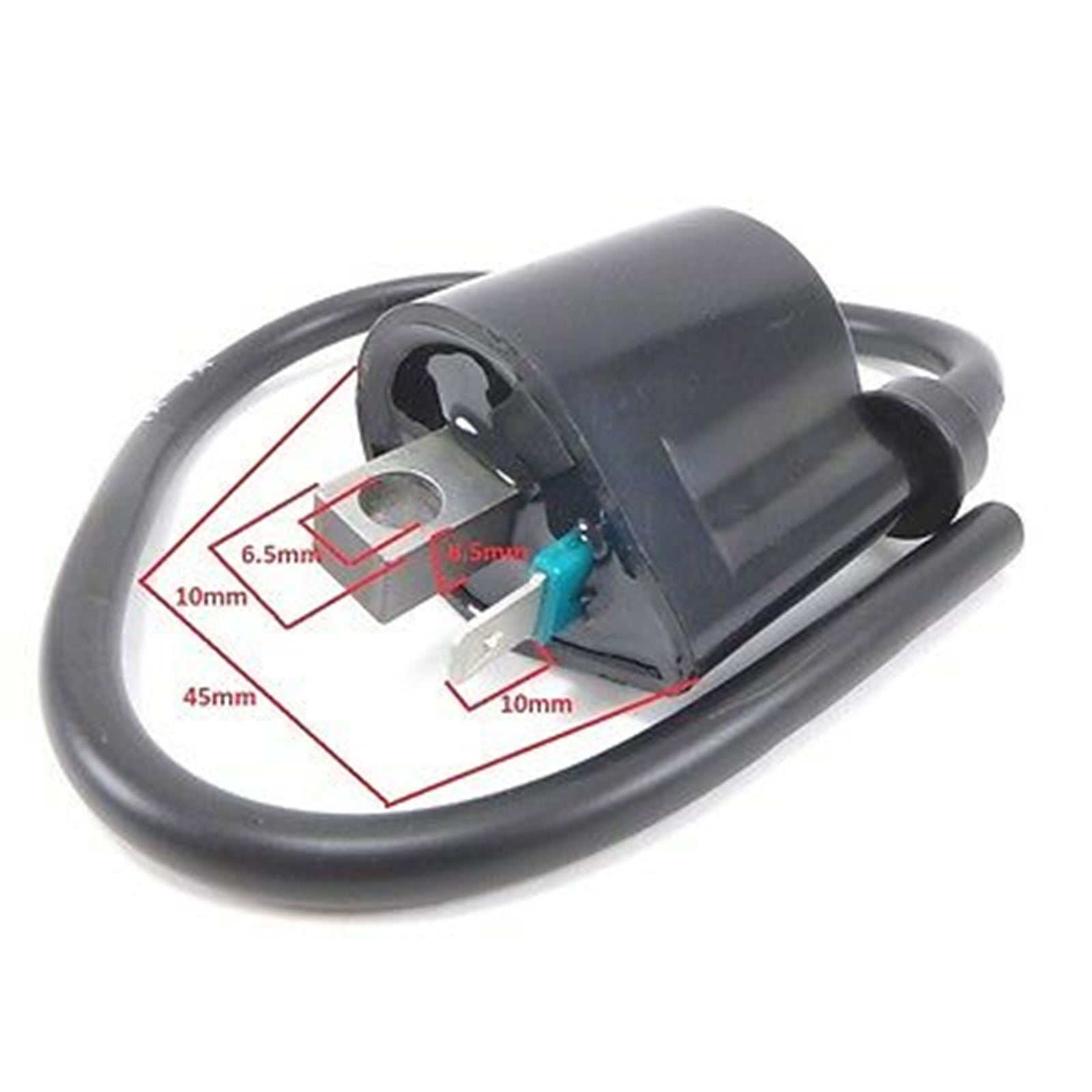

Mounting Hole Diameter: 6.5mm

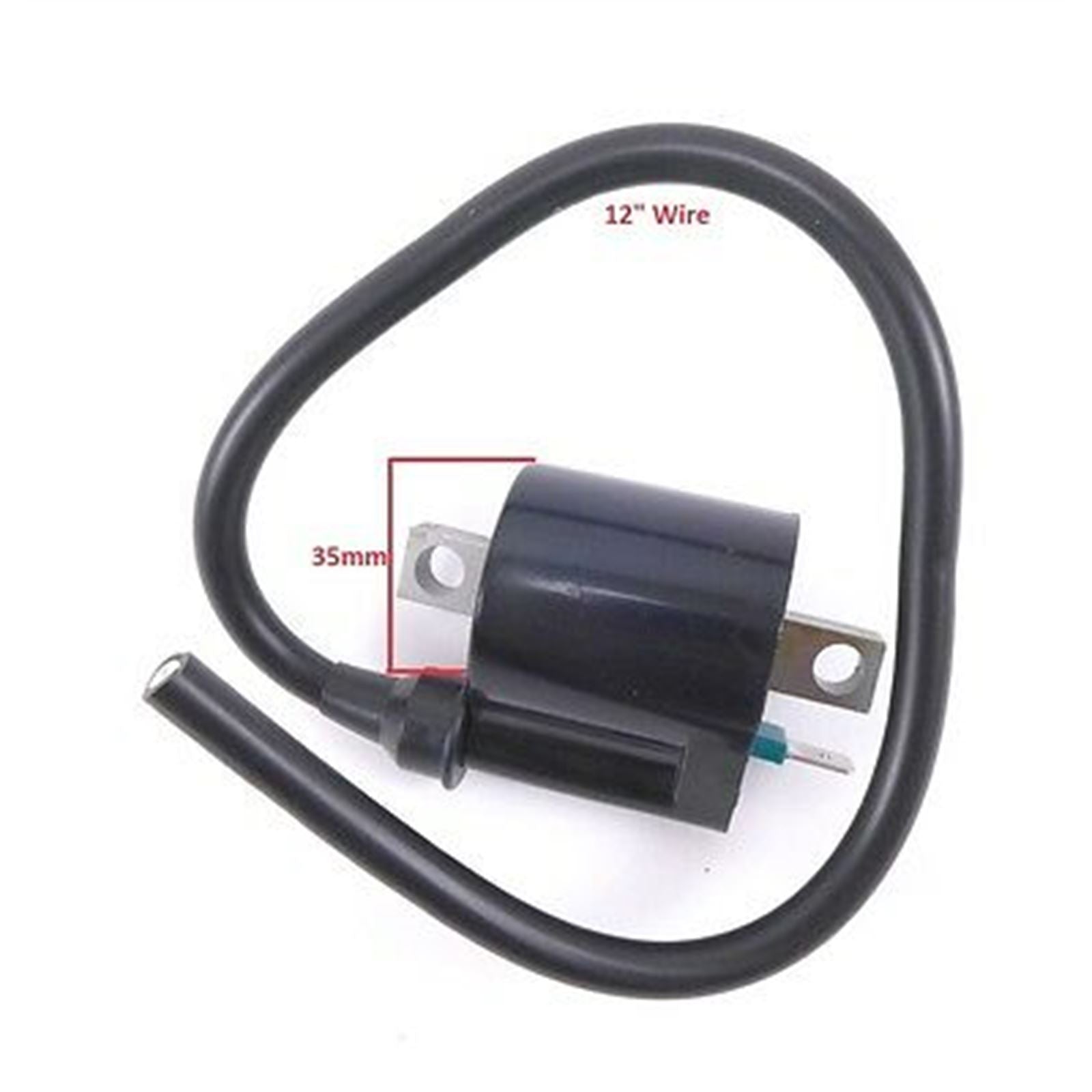

Overall width of main body: 35mm
Overall height of main body: 45mm
Overall length of main body: 38mm
Overall length of plug wire: 12"
Note: Includes Weather Resistant Cap!
